Cogecum XLPO HFFR

Cogegum® XLPO-HFFR

Cogegum® GFR XLPO-HFFR
The Cogegum® GFR grades are silane cross-linkable Halogen Free Fire Retardant compounds, mainly used for Wire and Cable insulation and sheathing applications.
Cogegum® GFR XLPO grades allow fast curing in ambient moisture and are ready-to-use on conventional thermoplastic extruder lines. They are suited for applications requiring chemical and weathering resistance (oil, fuels, alkaline, acids, mud, UV) in a wide working temperature range with high flame retardant properties and ROHS compliance

Key Features

●      Improved resistance to oxidative aging
●      Cross-linkable materials for high working temperatures (≥90°C) and very severe short-circuit temperatures (≥250°C)
●      Enhanced mechanical performance at high temperature
●      Very good mineral oil and fluid resistance
●      Halogen Free Fire Retardant
●      High electrical properties
●      Ambient curing
●      High extrusion speed
●      Catalyst grades are available to match performance to specific demands

Performance

Cogegum® XLPO-HFFR suit applications requiring chemical and weathering resistance in a wide working temperature range with high flame retardant properties. All grades are ready-to-use on standard extrusion lines.

Applications

Wire & Cable Insulation and Sheathing
Alternative energy cables (PV, Windmill, …)
Railway, shipboard and defence cable
Oil&Gas cable
Safety cable
Fire resistant cable
Heat resistant cable
Automotive wiring
Specialty Building wire
LV and MV armored cable sheathing
Industrial wire
Telecom and Optical Fiber cable


Cross-linkable in ambient condition, low smoke Halogen Free Fire Retardant (LS0H-FR) Insulation grade. High resistance to flame and hot deformation; wide range of applications, including EI5, Building wire H07Z, BS7211, fire survivor cables.

GFR 325

Cross-linkable in ambient condition, low smoke Halogen Free Fire Retardant (LS0H-FR), flexible Insulation/sheathing grade. For increased heat-resistant cables working at severe temperature conditions, including PV, heat resistant and industrial cables.

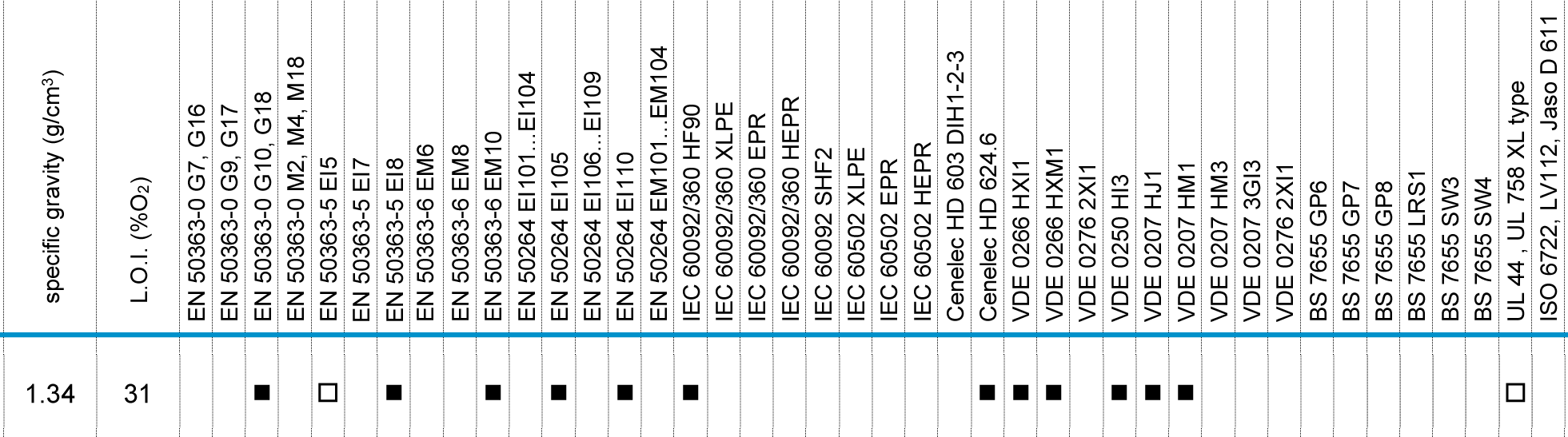

GFR 340

Cross-linkable in ambient condition, low smoke Halogen Free Fire Retardant (LS0H-FR), flexible Insulation/sheathing grade. For increased temperature applications requiring outstanding hot deformation resistance.

GFR 340

Cross-linkable in ambient condition, low smoke Halogen Free Fire Retardant (LS0H-FR) Insulation/sheathing grade. Combines good flame retardancy with flexibility.

GFR 350

Cross-linkable in ambient condition, low smoke Halogen Free Fire Retardant (LS0H-FR) Insulation/sheathing grade. Offering excellent resistance to oil, fuel and aggressive fluids. Main applications are power, signal, control and special cables, including railway rolling stock, ship wiring, on-shore and off-shore platform wiring.

GFR 360

Cross-linkable in ambient condition, low smoke Halogen Free Fire Retardant (LS0H-FR) Insulation/sheathing grade. Improved flexibility, excellent resistance to oil, fuel and aggressive fluids. Main applications refer to power, signal, control and special cables, including railway, rolling stock, ship wiring, on-shore and off-shore platform wiring.

GFR 365

Cross-linkable in ambient condition, low smoke Halogen Free Fire Retardant (LS0H-FR) sheathing grade. Excellent combination of outstanding flame retardancy and flexibility, with high oil and fuel resistance. For railway, rolling stock, shipboard, on-shore, off-shore, windmill power-signal, communication and industrial cables.

GFR 380

Cross-linkable in ambient condition, low smoke Halogen Free Fire Retardant (LS0H-FR) Insulation/sheathing grade. Oil and fuel resistant grade with high electrical properties also in wet conditions. Usable in severe environmental conditions: -60°C up to 125°C Dry, UL Wet rating 90°C. UL44 and UL758 XL type.

GFR 320

Cross-linkable in ambient condition, low smoke Halogen Free Fire Retardant. FR-XLPE, insulation grade with excellent electrical and mechanical properties. Ideal solution to upgrade XLPE insulated cable, where high flame retardancy is required like for CPR, Building & Construction cables.

GFR 1614

Cross-linkable in ambient condition, Halogen Free Flame Retardant, XLPO insulation/sheathing grade. Combines excellent flame retardancy with flexibility, designed to comply with UL 44 VW1 test. Main applications include appliance wire (UL758), E&E cables.

GFR 1301
